Franklin Electric Motor - 55.00KW 400V

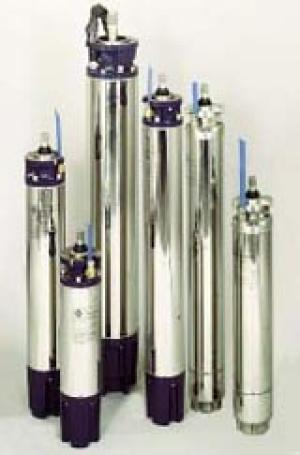

8" 200mm Franklin Electric Encapsulated Motors

Franklin Electric 8" encapsulated Motors, manufactured to ISO 9001 standards, are the quality drive for your submersible pump. Water lubricated thrust and radial bearings offer you a maintenance free long life submersible motor operation. The Sand Fighter® seal system is the option for sandy applications.

Product advantages:

• Hermetically sealed stator, Anti track, self healing stator resin prevents motor burn out
• Removable "Water Bloc" lead connector
• Cable material according to drinking water regulations (KTW approved)
• Sand slinger and shaft seal for high performance in sand
• High efficiency electrical design for low operation cost
• All motors prefilled and 100% tested
• Non contaminating, water-filled design

Optional

• Other voltages
• Motors in complete 316SS
• PT 100 temperature sensor (sold separately)
• Sand fighter®" Motor with SiC - Mechanical Seal
• Lead in different lengths up to 50m
• Star / Delta - start (pos. of cables 90°)

Technical Specification Standard Motor

• 30.....130 kW
• 8" NEMA flange
• Protection: IP 68
• Starts per hour: max. 20
• Installation position: vertical / horizontal
• Standard voltage: 380-415V/50Hz, 460V/60Hz Voltage tolerance: +6% / -10% (Standard: 415 + 6% = 440V, 380 – 10% = 342V)
• Insulation: Class F
• Rated ambient temperature: 30°C
• Cooling flow: min. 16 cm/sec
• Built-in Subtrol-Plus Transmitter, up to 110 kW
• Motor lead in 8 m length (KTW approved)
