Franklin Electric Motor - 37.00KW 400V » Buy online now for only R 69,742.74 incl. VAT

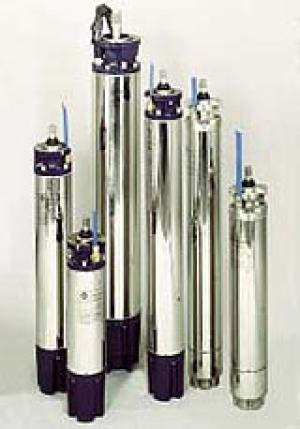

6" 150mm Franklin Electric Encapsulated Motors

Franklin Electric 6" encapsulated Motors, manufactured to ISO 9001 standards, are the quality drive for your submersible pump. Water lubricated thrust and radial bearings offer you a maintenance free long life submersible motor operation. The Sand Fighter® seal system is the option for sandy applications.

Product advantages:

• Hermetically sealed stator, Anti track, self healing stator resin prevents motor burn out
• Removable "Water Bloc" lead connector
• Cable material according to drinking water regulations (KTW approved)
• Sand slinger and shaft seal for high performance in sand
• High efficiency electrical design for low operation cost
• All motors prefilled and 100% tested
• Non contaminating, water-filled design

Technical Specification Standard Motor

• 4.....45 kW
• 6" NEMA flange
• Protection: IP 68
• Starts per hour: max. 20
• Installation position: vertical / horizontal
• Standard voltage: 380-415V/50Hz, 460V/60Hz
Voltage tolerance: +6% / -10%
(Standard: 415 + 6% = 440V, 380 – 10% = 342V)
• Insulation: Class F
• Rated ambient temperature: 30°C
• Cooling flow: min. 16 cm/sec

Optional

• Other voltages
• Motors in complete 316SS
• PT 100 temperature sensor (sold separately)
• Sand fighter®" Motor with SiC - Mechanical Seal
• Isolamento: class F
• Motor lead in 4m lenght (KTW approved) Lead in different lengths up to 50m
• Star / Delta - start (pos. of cables 90°)
• Provision for filling solution of exchange
• Built-in PTC temperature sensor (Optional)
• Built-in Subtrol-Plus Transmitter. Standard 30 - 45kW other sizes optional
