Franklin Electric Motor - 0.56KW 220V

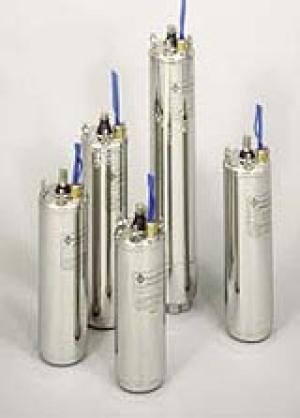

4" 100mm Franklin Electric Encapsulated Motors

Franklin Electric 4" encapsulated 3-wire capacitor start single phase Motors, manufactured to ISO 9001 standards. Together with the Franklin Electric Control Boxes, they offer you maintenance free long life operation by high starting torque and included motor protection.

Product advantages:

• Hermetically sealed stator. Anti track, self healing stator resin prevents motor burn out
• High efficiency electrical design (low operation cost, cooler winding temperature)
• Removable „Water Bloc" lead connector
• Cable material according to drinking water regulations (KTW approved)
• Water lubricated radial and thrust bearings
• All motors prefilled and 100% tested
• Non contaminating, water-filled design
• For use with Franklin Electric control box
• Offer highest starting torque of all single phase motors

Technical Specification Standard Motor

• 4" NEMA flange
• Rotation: CCW facing shaft end
• Degree of protection: IP68
• Insulation: Cl. B
• Rated Ambient temp.: 30°C
• Cooling flow: Motors 2,2 kW and larger: min 8 cm/sec
• Starts/h: 20
• Mounting: vertical/horizontal
• Voltage tolerance: +6% / -10% UN
• Motor protection: included Franklin Electric Control Boxes Options
• Motor cable KTW, VDE approved (1,5m; special lengths available)
• Complete 316 SS Motor with SiC seal
• Built-in lightning arrestor
