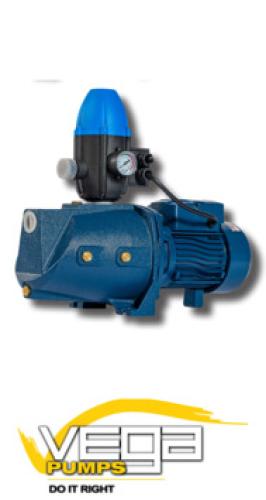

Vega JSWM110 – 1.1kW (220V) Jet Pump with C/W Flow Control » Buy online now for only R 3,965.20 incl. VAT
14577
Description
The JSWM selection is recommended for pumping clean water without abrasive particles, as well as liquids that are chemically non-aggressive to the pump’s materials. This unit delivers flow up to 50L/min and pressure up to 7Bar. They are suitable for domestic use, irrigation applications, and specifically for the extraction of water from well points due to their reliability, and ease of use.
Application
- This range is recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials of which the pump is made. Due to their reliability, simplicity of use and economy, they are suitable for domestic use, irrigation applications and specifically for the extraction of water from well points. The pump must be installed under a vented cover and protected against exposure to rain or water spray.
Specification
- Flow rate: max 50 L/min (3m³/h)
- Head: max 70m
- Suction lift: max 7m
- Liquid temperature: 40°C
- Ambient temperature: 40°C
Construction characteristics
- Pump Body: Cast Iron
- Impeller: Brass
- Motor Shaft: Stainless Steel 304
- Mechanical Seal: Ceramic-graphite
- Electric Motor: Single-phase 230V - 50Hz with capacitor and thermal overload protector.
- Insulation: Class B
- Protection: IP44
