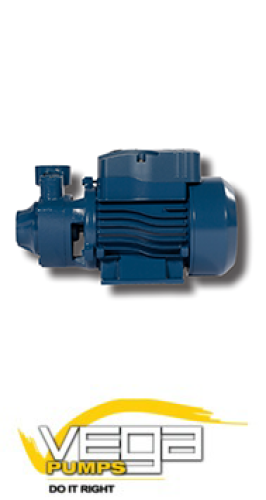

Vega QB60 P/Vane 0.37kW (220V) End-Suction Peripheral Vane QB Range » Buy online now for only R 1,144.63 incl. VAT
14537
Description
The QB60 Peripheral Vane Pump is an effective, reliable, and energy-efficient unit. It has a flow rate of up to 25 liters per minute.
Application
- The QB range is recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials of which the pump is made.
- Due to their reliability, simplicity of use and economy, they are suitable for domestic use and in particular for high pressure applications.
- The pump must be installed under a vented cover and protected against exposure to rain or water spray.
- The QB range is manufactured with a brass insert plate to minimize the build up of minerals and heavy metal in the volute.
Specification
- Flow rate max: 25 L/min (3m³/h)
- Head max: 38m
Construction characteristics
- Pump Body: Cast Iron (Brass inserts front and back of volute)
- Impeller: Brass, with radial peripheral vanes
- Motor Shaft: Stainless Steel 304
- Mechanical Seal: Ceramic-graphite
- Electric Motor: Single-phase 220V - 50Hz with capacitor and thermal overload protector.
- Insulation: Class B
- Protection: IP44
