Omega 30KW 400V Submersible Borehole Electric Motor » Buy online now for only R 41,871.04 incl. VAT

R 41,871.04 incl. VATAdd to Basket

Average Delivery Time:

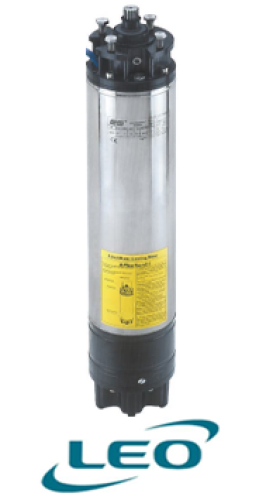

Omega 30KW 400V Submersible Borehole Electric Motor image 1

Performance

  • Meet requirements of standard IEC34-1 with sealed cooling lubricated design, non-pollution.
  • The dimensions of mounting flange and spline meet the requirements of NEMA.
  • The outer shells of motor and shafts are made of stainless steel as well as the fixings. Other parts are rust proof.
  • The main bearing and the thrust bearing have the character of anti-wearing and undertake higher thrust.
  • With anti-sand installation and reformed butyl-rubber pressure equilibrium membrane.

Features

  • Power: Three phase 380V,50Hz
  • Max. water temperature: +35ºC
  • PH Value: 6.5-8.0
  • Max. solid content: 0.1%
  • Max. re-start frequency: 30 times/hour
  • Thrust load: 15 500N for at or under 15kw; 30 000N for 18.5kw to 37kw
  • Flat cable with individual ground wire: 3x6.0mm or 3x10.0mm waterproof connect cable.
  • Cable length 1.5 – 4m
