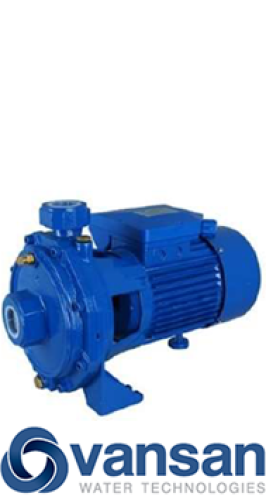

Vansan SCM2-60 - 2.2KW 400V Twin Impeller Centrifugal Pump

Vansan SCM2-60 - 2.2KW 400V Twin Impeller Centrifugal Pump

Performance

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for industrial use and urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Features

• Pump body: cast iron
• Impeller: Brass
• Internal thermal protector Motor shaft: AISI 1045
• Mechanical seal: NBR/Graphite/Ceramic IEC 60034-1
• IEC 335-1
• IEC 34-1
• ISO 2548
• Single phase power supply with capacitor permanently
• Insulation class: B
• Protection: Ip44
• Speed of rotation: 2850rpm
• Continuous duty: S1

Applications

• Suction lift up to 6-8m with foot valve
• Maximum operating pressure :8 bar
• Maximum ambient temperature +40°C
• Liquid temperature up to +90°C
• Maximum Altitude +1000m
