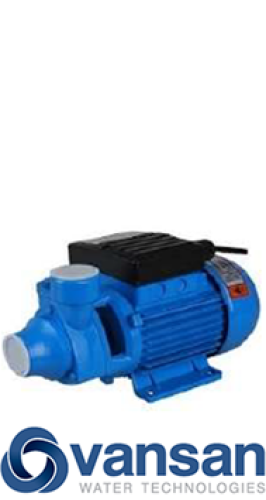

Vansan IDB40 - 0.37KW 230V Peripheral Pump

Vansan IDB40 - 0.37KW 230V Peripheral Pump

Performance

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

Features

• Pump body/ motor support: cast iron.
• Impeller: Brass.
• Internal thermal protector.
• Motor shaft: AISI1045.
• Mechanical seal: NBR/Graphite/Ceramic.
• IEC 60034-1
• IEC 335-1
• IEC 34-1
• ISO 2548
• Single phase power supply with capacitor permanently activated.
• Insulation class: B
• Protection: IP44
• Speed of rotation:2850rpm
• Continuous duty: S1

Applications

• Suction lift up to 6-8m with foot valve.
• Maximum operating pressure: 8 bar.
• Maximum ambient temperature: +40°C.
• Liquid temperature up to +90°C.
• Maximum altitude +1000m.
